Product details
Loops and Rings are often used to secure straps and also used as an anchor point for attaching ropes. It is commonly used in backpack straps, harness buckles, outdoor gears and more.
In addition to D-rings, we also have O-rings, rectangular rings, straps and various plastic accessories for selection.
Made from Nylon plastic, which is durable and offers excellent long-term stability.

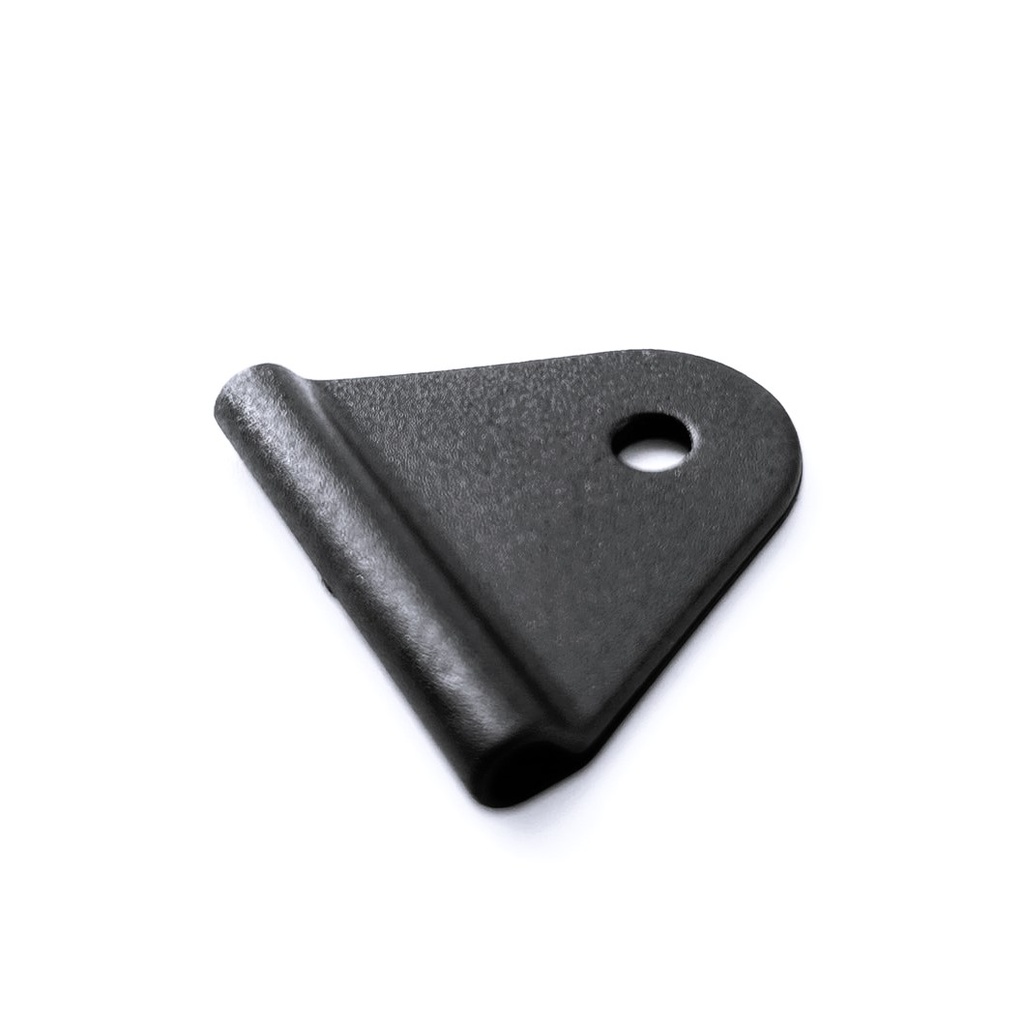

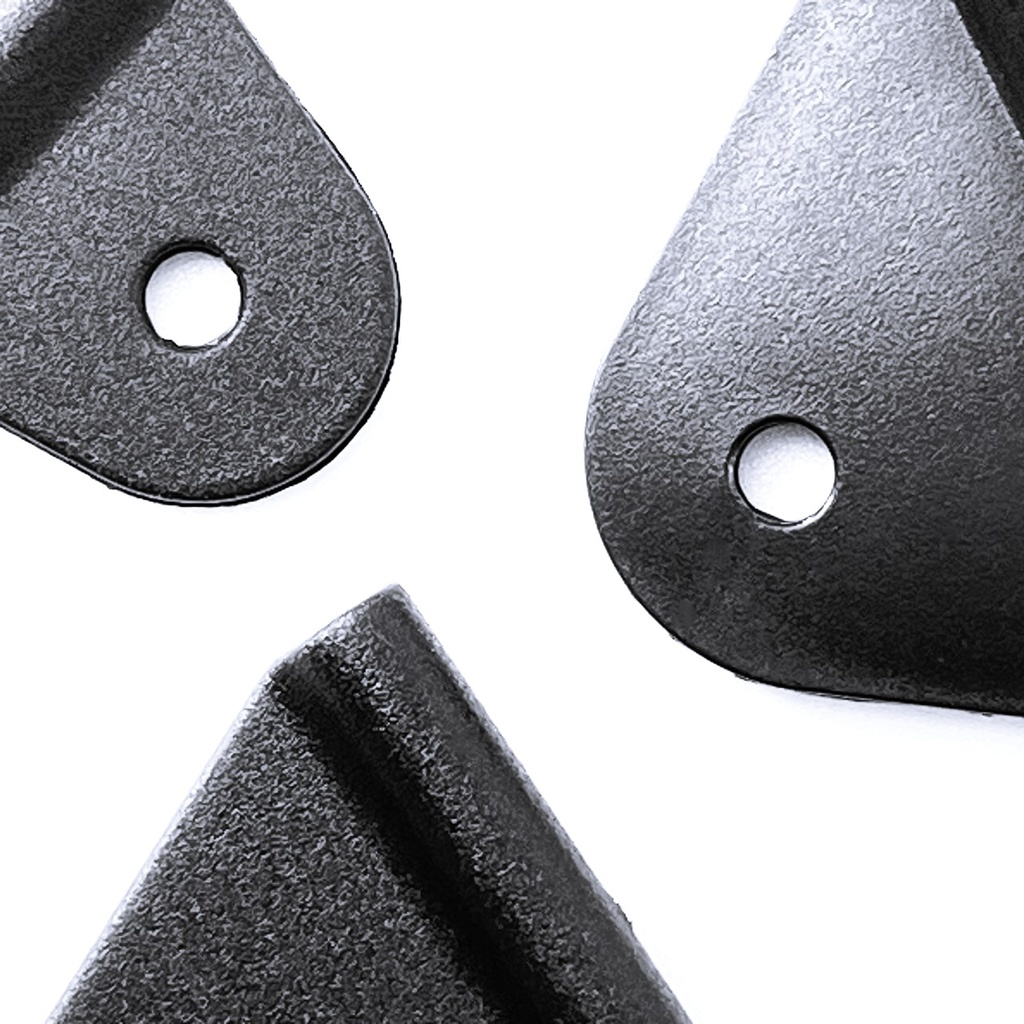

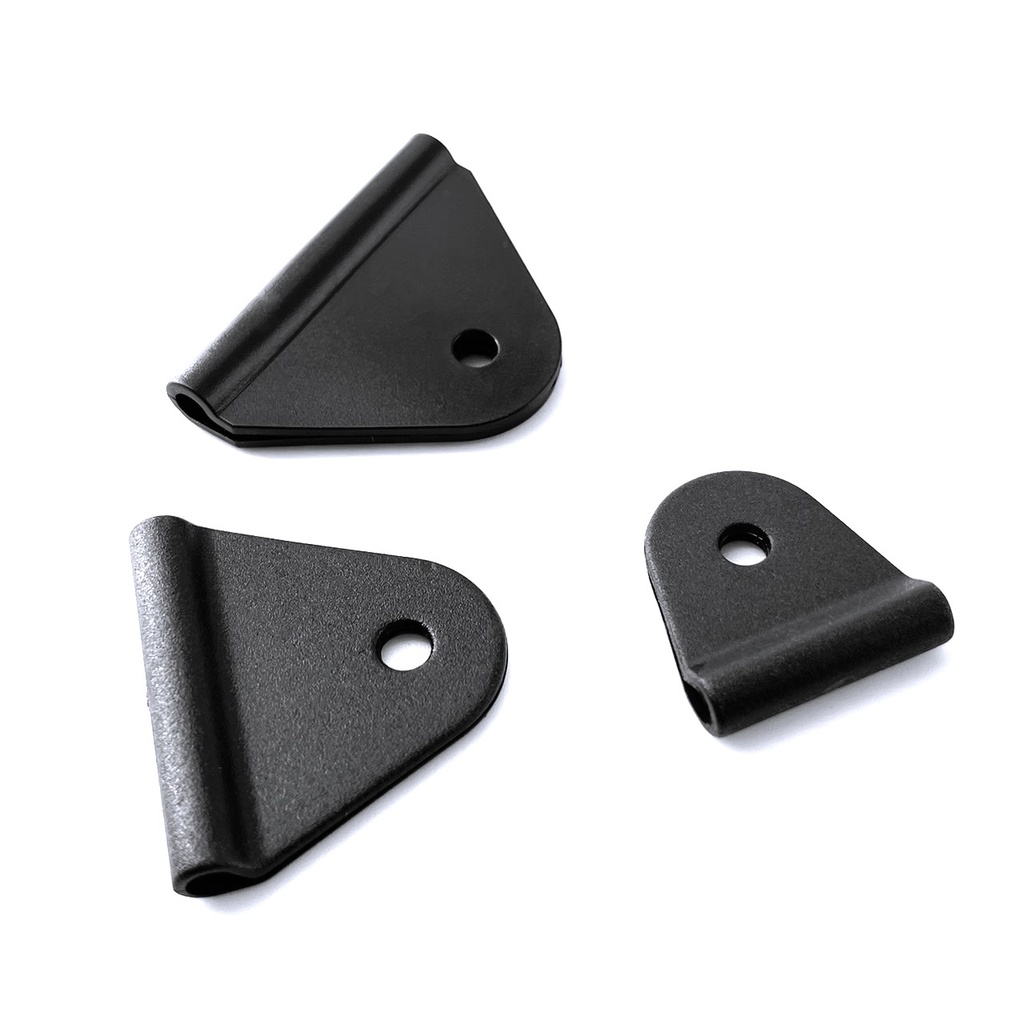

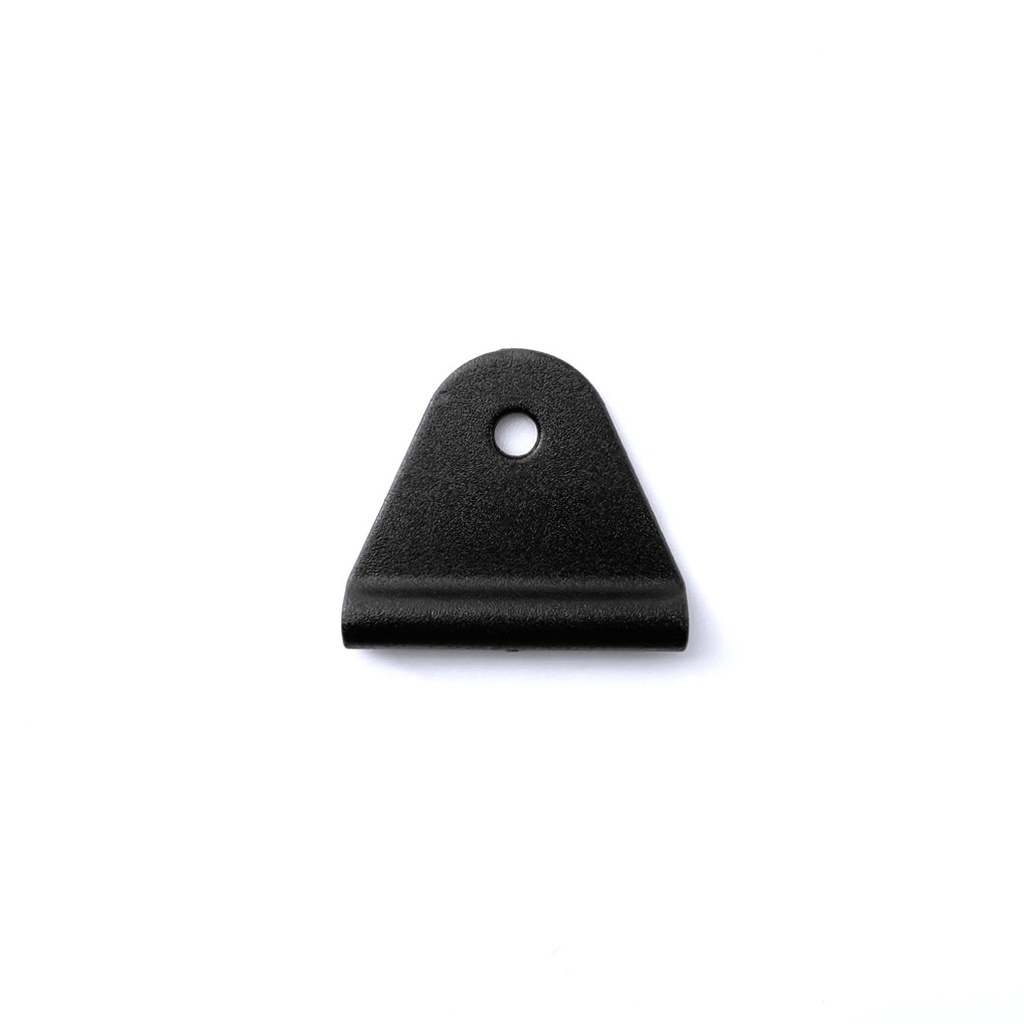

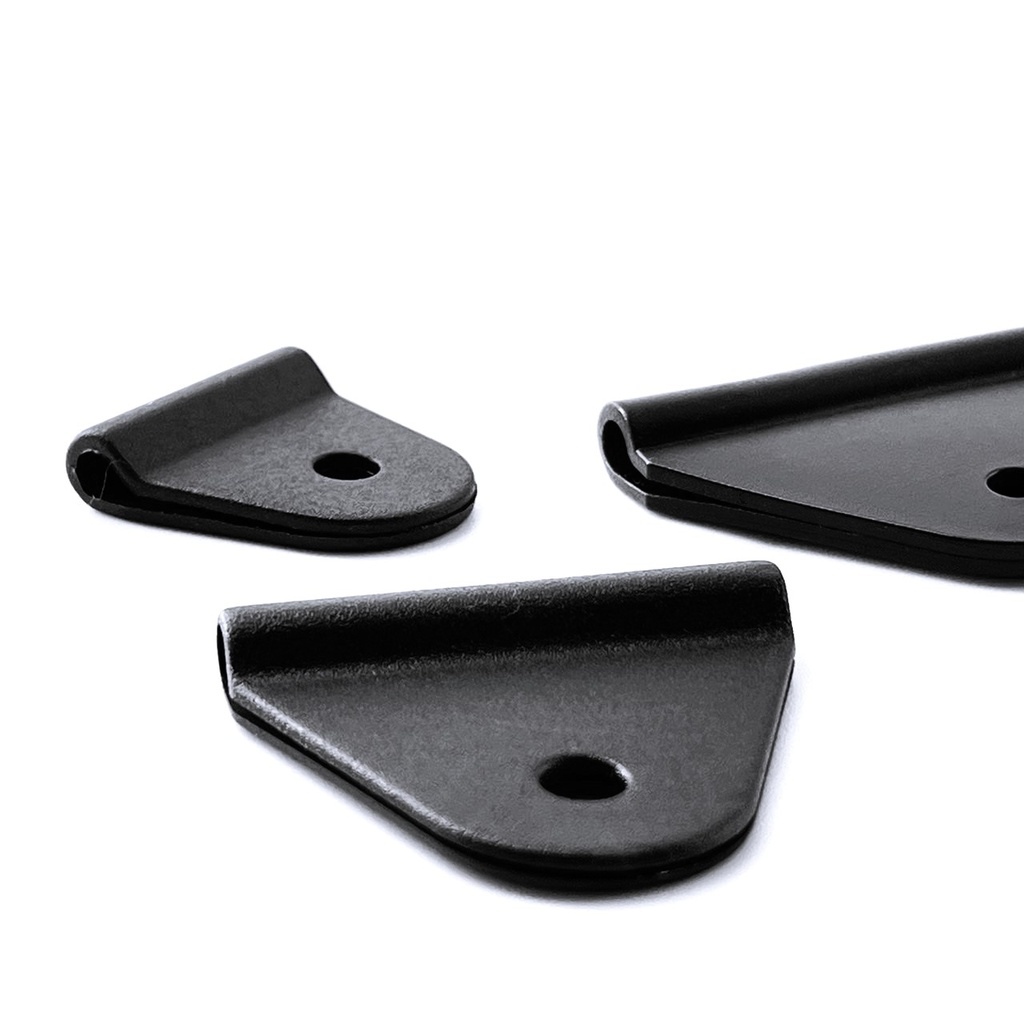

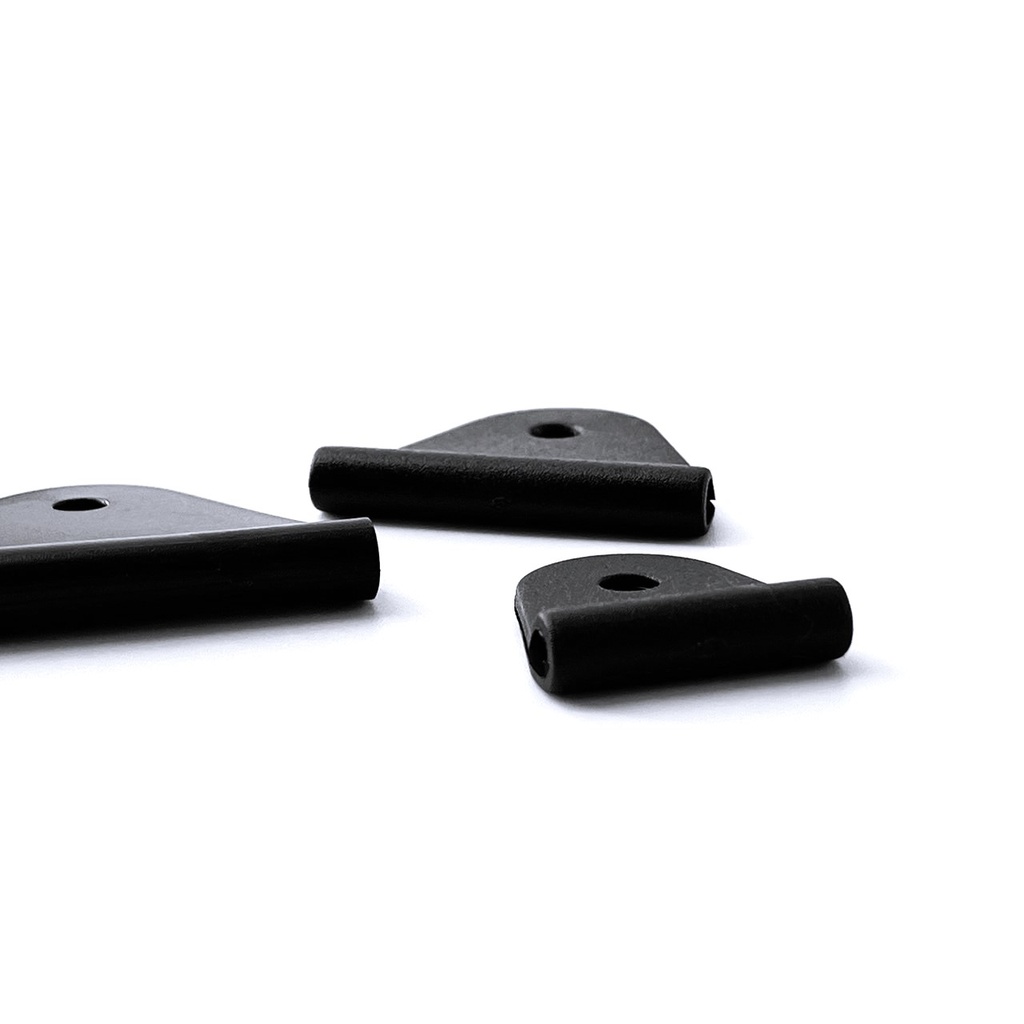

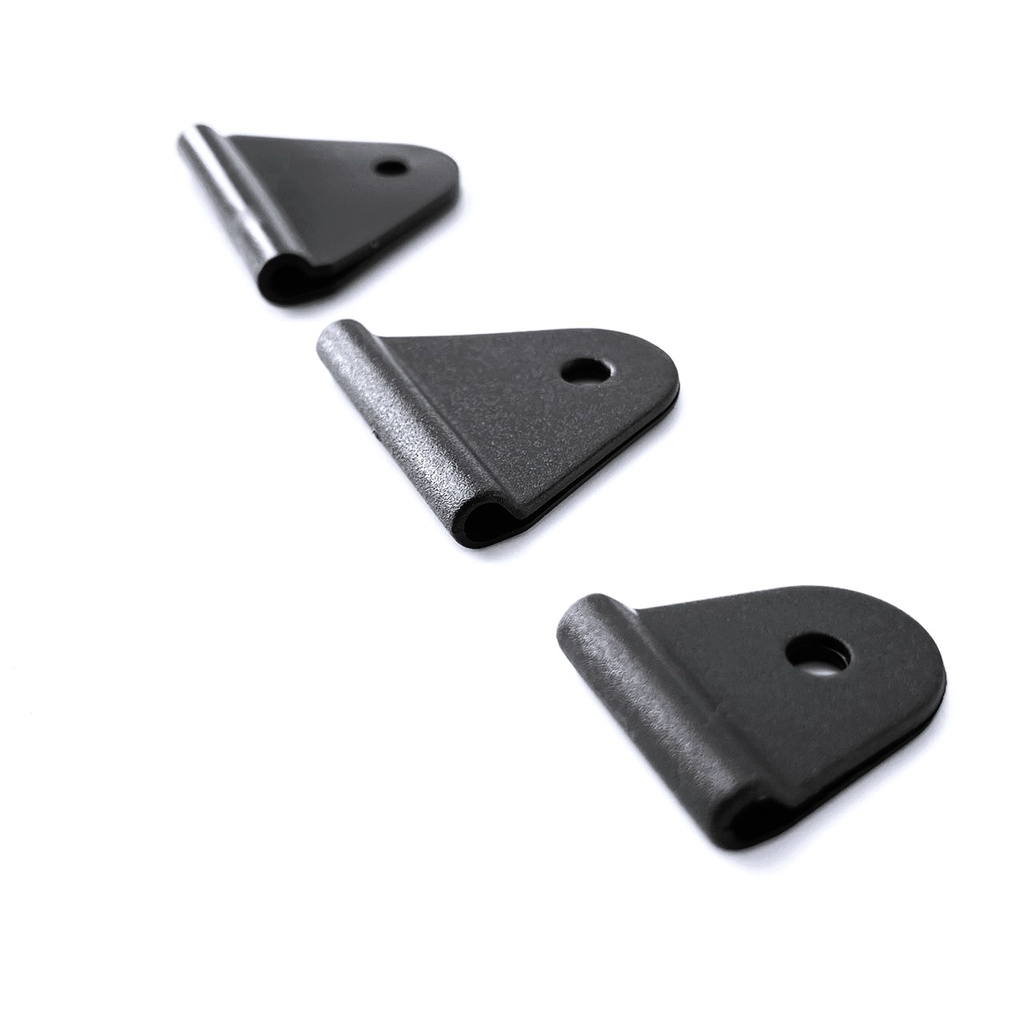

The BP-310 Series Chafe Tab has a triangular shape. This product is commonly used in medical items, such as rehabilitation shoes. It can be paired with plastic or metal Loops or D-Rings for use.

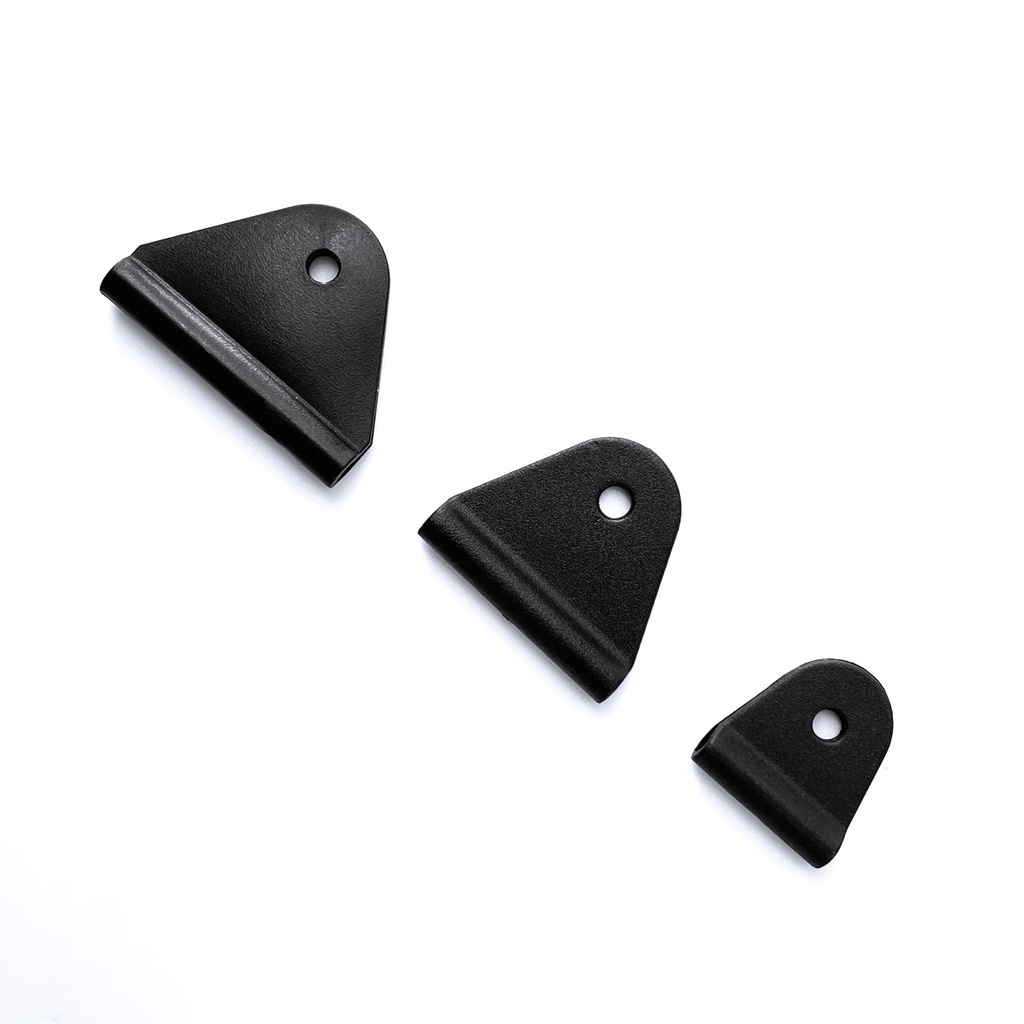

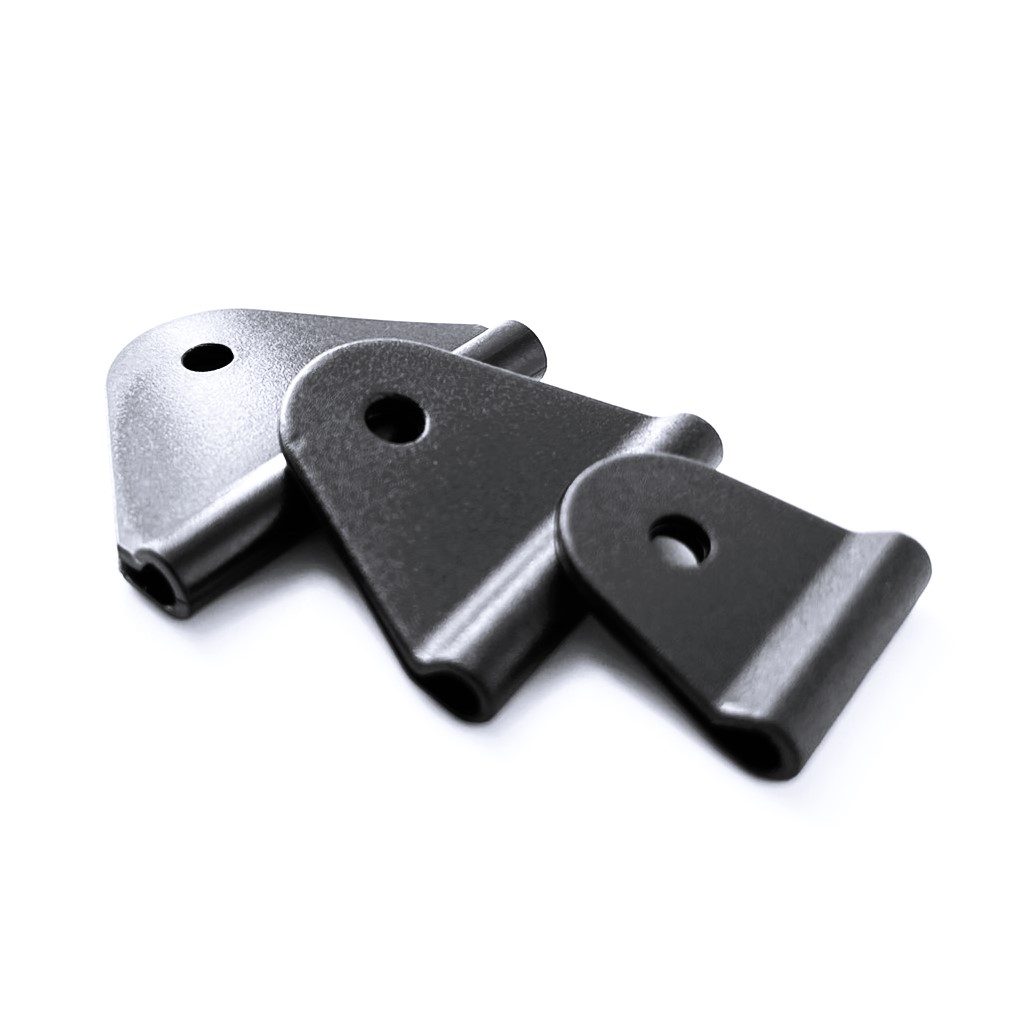

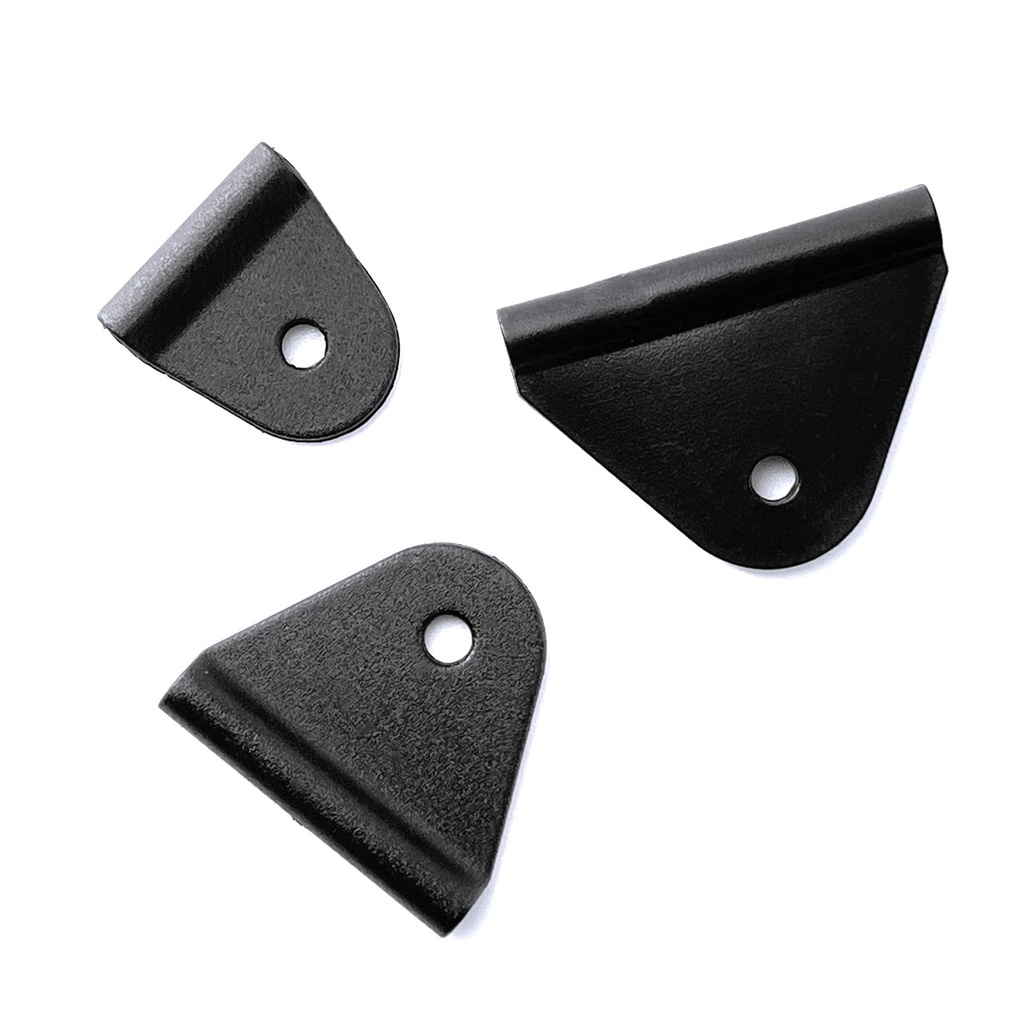

Available in 3/4" (20mm), 1" (25mm), 1-1/2" (38mm) and 2" (50mm) size.
*Please confirm the strap/webbing size before ordering.
Customizable Parts:
- Color
Other Related Products:
- BP-310-1 Series Chafe Tab with Metal Loop
- BP-311 Series Chafe Tab with Plastic Loop
- BP-312 Series Chafe Tab with Metal D-ring
- BP-313 Series Chafe Tab with Plastic D-ring
Specification
| Product No. |
Size(in) | L(mm) |
W(mm) | H(mm) |
Hole's Dia.(mm) | Weight(g) |
| BP-310 1B | 3/4" | 26.40 | 19.42 | 7.90 |
Φ5.10
| - |
| BP-310 2B | 1" | 27.78 | 25.39 | 6.66 | Φ5.00 | 1.8 |
| BP-310 4B | 1-1/2" | 34.20 | 38.49 | 6.53 | Φ5.00 | 2.5 |
| BP-310 6B |
2" | 34.78 |
50.71 |
7.49 |
Φ5.41 | 3.3 |
