Product details
Loops and Rings are often used to secure straps and also used as an anchor point for attaching ropes. It is commonly used in backpack straps, harness buckles, outdoor gears and more.
In addition to D-rings, we also have O-rings, rectangular rings, straps and various plastic accessories for selection.
Made from POM plastic, it is durable and offers excellent long-term stability. Not only is it waterproof, but it is also lightweight.

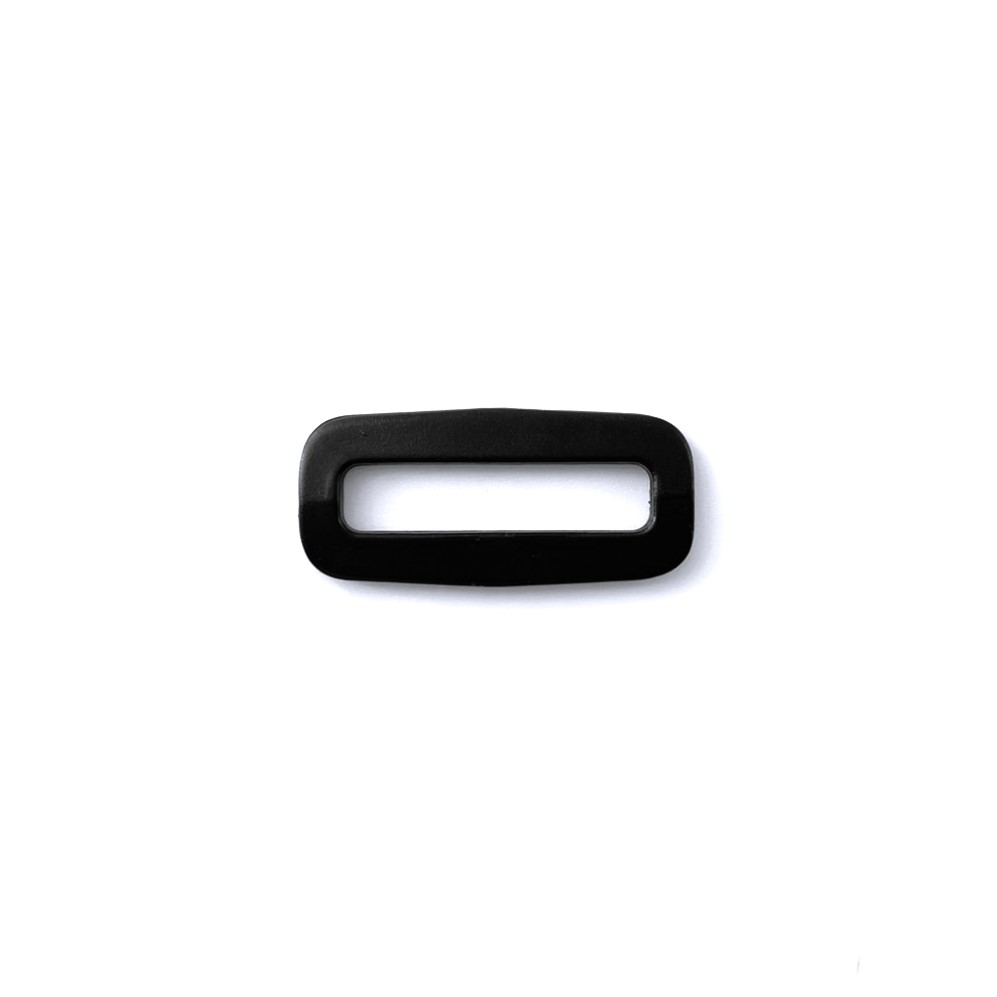

The BP-401 Series Loop has a rectangular shape, and the horizontal bars at the middle of the top and bottom have a slightly raised design, rather than being completely straight.
And it is compatible with 5/8" (15mm), 3/4" (20mm), 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 1-3/4" (45mm), and 2" (50mm) webbing.
*Please confirm the strap/webbing size before ordering.
Customizable Parts:
- Color
Other Loops:
- BP-402 Loop
- BP-403 Loop
- BP-404 Loop
- BP-405 Loop
- BP-406 Loop
- BP-407 Loop
- BP-408 Loop
- BP-410 Loop
- BP-411 Loop
- BP-413 Loop
Specification
| Product No. |
Size(in) | L(mm) |
W(mm) | H(mm) |
Win(mm) | Weight(g) |
| BP-401 7B | 5/8" | 23.30 | 14.39 | 3.80 | 16.30 | 0.8 |
| BP-401 1B | 3/4" | 27.64 | 15.15 | 3.62 | 20.60 | 1.2 |
| BP-401 2B |
1" | 34.41 |
17.16 |
3.46 |
26.36 | 1.3 |
| BP-401 3B | 1-1/4" | 41.82 | 19.02 | 3.84 | 32.58 | 2.1 |
| BP-401 4B | 1-1/2" | 47.96 | 20.2 | 3.96 | 38.22 | 2.7 |
| BP-401 5B | 1-3/4" | 55.10 | 20.60 | 4.69 | 44.91 | - |
| BP-401 6B | 2" | 61.78 | 21.04 | 4.42 | 52.18 | 4.6 |
